What is the Difference Between Gravity and Vacuum Filtration?

The main difference between gravity filtration and vacuum filtration is the driving force behind the liquid separation. Gravity filtration relies strictly on the natural pull of gravity to draw liquid through a filter medium, making it slow but ideal for retaining a desired filtrate. Vacuum filtration uses a mechanical pump to create a pressure differential that pulls liquid through the filter at a drastically accelerated rate, making it the superior choice for collecting dry crystals or precipitates quickly.

Comparison at a Glance

Feature

Gravity Filtration

Vacuum Filtration

Driving Force

Gravity alone

Vacuum pump / pressure differential

Speed

Slow to very slow

Extremely fast (saves hours)

Best For...

Removing impurities from a liquid you want to keep

Isolating and drying solid crystals or precipitates

Typical Setup

Ring stand, funnel, fluted filter paper

Büchner funnel, filtering flask, vacuum pump

Risk Factor

Low risk of paper tearing

Filter paper can tear if the vacuum pressure is too high

Deep Dive: Gravity Filtration

Gravity filtration is the traditional, entry-level method taught in introductory science classes. Liquid is poured into a funnel lined with filter paper, and gravity slowly pulls the liquid through, leaving insoluble solids behind.

  • When to Use It: Use gravity filtration if your ultimate goal is to keep the liquid (the filtrate) and discard the solid precipitate, or if the solid particles are large enough that a slow speed won’t stall your workflow.
  • Pros:
    • Incredibly low startup cost.
    • Gentle process with zero risk of tearing filter paper under pressure.
  • Cons:
    • Extremely slow: Can take hours for viscous liquids or fine precipitates.
    • Lower Yield: Retains a high amount of liquid residue within the solid mass.

Deep Dive: Vacuum Filtration (Suction Filtration)

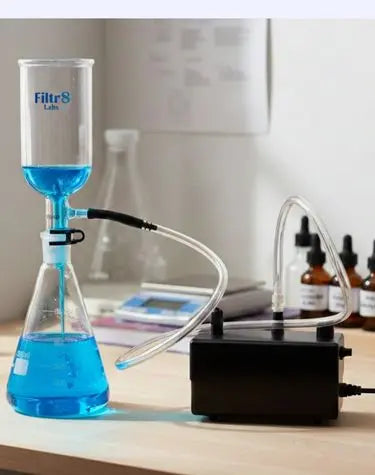

Vacuum filtration introduces a vacuum source—like a compact laboratory pump—to create a vacuum inside the receiving flask. This pressure difference forces the liquid through the filter paper rapidly, dramatically accelerating the separation process.

  • When to Use It: Essential when you need to collect a dry solid residue (like crystals from a recrystallization process), work with high-volume batches, or when time and efficiency are critical to your small business or lab workflow.
  • Pros:
    • Unmatched Speed: Tasks that take an hour via gravity are finished in seconds.
    • Drier Solids: The continuous air pulled through the filter helps air-dry the collected solids immediately.
  • Cons:
    • Requires a bit more specialized equipment (Büchner funnel, vacuum pump)



How to Upgrade Your Setup Without Breaking the Budget

Many small labs, schools, and hobbyists stick to slow gravity filtration because they assume a vacuum system is too expensive, bulky, or loud.

At Filtr8 Labs, we designed a solution specifically to solve that problem. Our compact, ultra-quiet vacuum filtration kits give you all the power of professional industrial setups at a fraction of the cost—completely removing the need for loud, expensive centralized vacuum systems.

Drastically Reduce Your Processing Time

The most immediate benefit of a Filtr8 Labs vacuum system is speed. While gravity filtration can take hours for thick or fine-particle solutions, our vacuum pumps pull the liquid through the filter media in a fraction of the time, allowing you to move to the next stage of production faster.

Achieve Professional Results on a Hobbyist Budget

Many small-scale producers assume that high-quality vacuum systems are only for large-scale industrial labs. We’ve designed our kits specifically for those who need lab-grade results without the corporate-lab price tag. Our goal is to make professional efficiency accessible to everyone.

Space-Saving Design for Desktop Labs

Traditional vacuum setups can be bulky and require complex installations. Filtr8 Labs specializes in compact, portable units that fit easily on a workbench, kitchen counter, or school lab station. You don't need a centralized vacuum system to get powerful results.

Quiet Operation for Better Focus

Industrial pumps are notorious for their deafening roar. Our pumps are engineered to be exceptionally quiet, making them ideal for educational environments, home workshops, or shared office spaces where noise pollution is a concern.

Hands-Free Efficiency

Stop hovering over your funnels. Our vacuum kits allow for hands-free operation, meaning you can set up your filtration and focus on other tasks while the pump does the heavy lifting. It’s about working smarter, not harder.ce this text with your content
